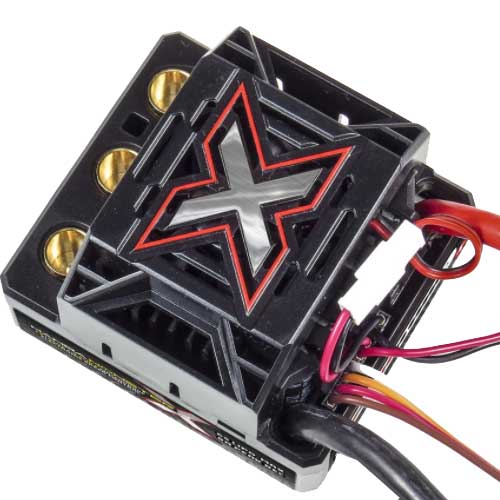

Regler Castle Mamba Monster X 1:8 Waterproof

Putting the X in Extreme!

Mamba Monster X is our latest 1:8 scale and Monster truck controller capable of 2S - 6S LiPo, with an 8 amp peak BEC - and, it’s waterproof*, so you can run your vehicle through morning dew, across soggy snow, or a muddy trail. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs with our Neu-Castle 1515 2200kv motor. It also comes standard with a highly efficient, 30mm ESC cooling fan. Mamba Monster X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.

New Firmware Available! Version 2.02 offers improved low speed control, stronger drag brake, new Aux Wire Mode "Crawler/Rock Race", and MUCH more. Check out all of the changes here and be sure to update your new Mamba X via the Castle Link!

The Auxiliary Advantage.

Mamba Monster X features the addition of a new, programmable Auxiliary Wire that allows you to make an “on-the-go” adjustment. Choose from several settings such as torque control, max throttle, or drag brake to fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter.

Sensored Motor Capable (with optional Sensor Harness)

Mamba Monster X can also be configured to run sensored brushless motors with the purchase of an optional Sensor Harness. This sensored-motor capability opens up a whole new segment of R/C enthusiasts who will now get to experience a Mamba Monster X-equipped racer, rock racer, or rock crawler.

Data Logging

Mamba Monster X can capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the Castle Link USB programmer; you can use the QuickConnect Duo (sold separately) to allow you to quickly access the ESC's receiver wire without having to disconnect from your receiver. You can then analyze this data and make adjustments to the ESC to maximize both performance and battery life.

Telemetry Capability

Mamba Monster X is telemetry ready, which means owners of the Futaba T4PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.

Technical Specs

Input Voltage Range: MIN: 2S LiPo

MAX: 6S LiPo (25.2V)

BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V

Operating Environment: Waterproof* design allows for use in nearly any environment.

Brake: Proportional

Reversible: Yes, but may be disabled for racing.

On/Off Switch: Yes

Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)

Size: Length: 2.09" (53mm)

Width: 1.93" (49mm)

Height: 1.44" (36.4mm)

Weight (with no battery connector): 3.92 oz. (111.g)

Connectors: 6.5mm female bullets for motor connection.

Items Needed for Operation: Battery Connector required, 6.5mm Castle Connectors are recommended.

Product Use Statements:

*Although Mamba Monster X and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode   when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Application Guidelines: Intended for up to 6S (25.2 Volt) operation in vehicles weighing less than 15 lbs, with batteries, ready-to-run.

Recommended Motors: Neu-Castle 1512 2650Kv: Max Cells: 4S Lipo or 12 NiMH

Neu-Castle 1515 2200Kv: Max Cells: 6S Lipo or 16 NiMH

Max. Recommended Vehicle Weight: Less than 15 lbs, with batteries, ready-to-run with 2200kv motor; no more than 9 lbs with 2650kv motor

Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Link included) and freely downloadable Castle Link Windows software.

Telemetry Link Capable: Yes

Tech Notes:

Mamba Monster X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).

Our experience  suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.

Applying voltages higher than 25.2V will cause irreparable damage to ESC.

We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our CCBULLET 6.5mm, Castle 6.5mm Polarized Connectors, Traxxas® Power Connectors, FlightPower Star™ Plug, or Deans® Ultra Plugs
