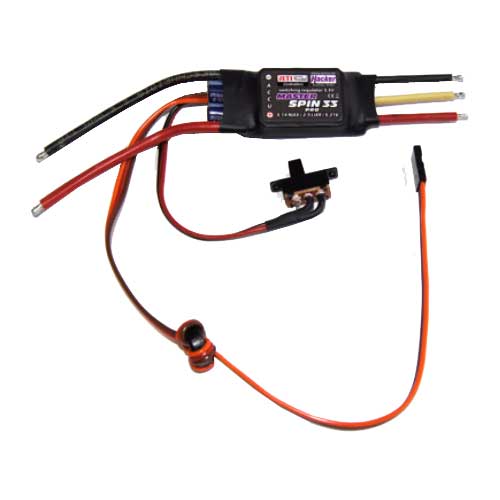

Brushless Regler Jeti MasterSpin 33 Pro BEC 2-5Li

Die Master Spin Pro Reihe bietet gegenüber der bisherigen Master Spin Baureihe erweiterte Programmiermöglichkeiten, wie z.B. "AUTO-Timing" und die direkte Eingabe der Abschalte-/Abregelspannung um allen Anforferungen und Akkutypen gerecht zu werden.

Technische Daten:

Betriebsspannung/Zellenzahl  5-14NC /2-5 LiPo /5-21V

Maße 42 x 23 x 7 mm

Innenwiderstand (mOhm) 2 x 2,6

Switching BEC  Getaktet

Max. Servoanzahl  7

Helimodus aktivierbar JA

Gewicht  30g

Strom Dauer (2,2Ah batt.) 33

FETs 18

Programmierbar Ja (Jeti Box)

max. Feldumdrehungen 210.000

The series SPIN pro controllers are successors of the former brushless series SPIN controller family. The new line with the attribute PRO offers in comparison with the predecessors increased adjustment possibilities like automatic motor timing, directly in volts practicable shut-off voltage adjustments, tuning of start-up properties for different motor types as well as new possibilities of mode activation for setting up autorotation of helicopters.

Parameters

Sustained current [A] 33

Quiescent current [mA] 1,4

Batteries NiXX 5-14

Batteries LiXX 2-5

Supply Voltage min. [V] 5

Supply Voltage max. [V] 21

Min. shut down voltage [V] 4,5

Dimensions [mm] 42 x 23 x 7

Weight [g] 32

Voltage BEC [V] 5,5

Max. Current BEC [A] 3

Max. sevos number [pcs] 7

Resistance in conducting state [mΩ] 2x 2,60

Number of power transistors 18

Cable crossection (input/output) [mm²] 2,5/1,5

Input capacitance [µF] 2x 220
