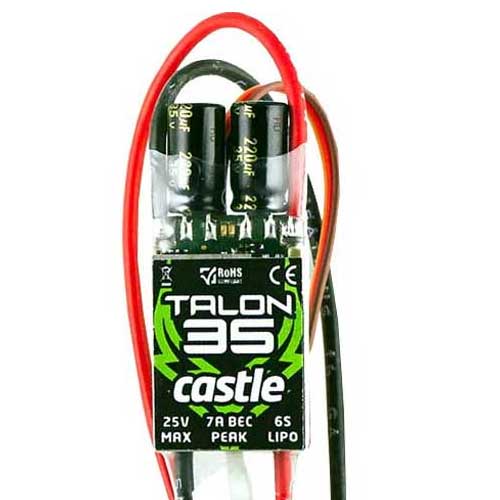

Regler Castle Talon 35A 2-6S

Castles Talon 35 Regler ist mit einem BEC für die heutige Servos-Generation ausgestattet. Es leistet dauerhaft 5 Ampere und kurzzeitig bis zu 7 Ampere.

Technische Daten

Eingangsspannung: 2S (7,4V) - 6S (22,2V)

Regler Ausgangsstrom (max.): 35 Ampere (bei konstantem Windzug von 8 km/h)

BEC Ausgangsspannung: 5.5V

BEC Ausgangsstrom: 5 Ampere (7 Ampere Spitze)

Breite: 22.4mm

Länge: 49mm

Höhe: 8.4mm

Gewicht: 27.8g

Talon 35: Little package, big BEC.
This "mighty mini" can take on the most extreme maneuvers while keeping it’s cool. Talon 35 is intended for use in 450 Heli setups running up to 6S or .10 to .20 fixed wing applications pulling up to 35 amps and boasts a 7 amp peak/5 amp continuous BEC, keeping even the most draining servos at ease. Talon 35 also offers Castle’s industry-leading helicopter functions, not to mention easy programming using the Castle Link USB adapter. The compact layout and thin profile make mounting Talon 35 simple and stress-free in any setup.

Item number 010-0122-00

Input voltage MIN: 2S LiPo

MAX: 6S LiPo

Max continuous amperage at full throttle 35 amps*

BEC voltage (voltage regulator for powering radio and servos) 5.5 volts

BEC output 7 amp peak**

5 amp continuous

(always check servo draw prior to first flight)

Dimensions Width: 0.88" (22.4mm)

Length: 1.93" (49mm)

Depth: 0.33" (8.4mm)

Weight (with wires) 0.98 oz. (27.8g)

Weight (without wires) 0.42 oz (12g)

Items needed for operation or installation Battery connector and motor connectors sold separately

Programmability Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.
