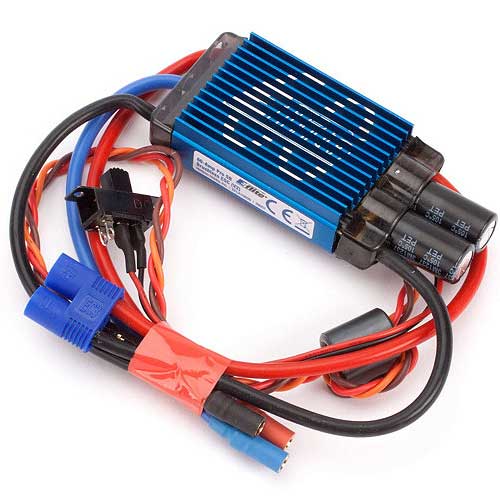

Regler E-Flite BL 60Ah Pro SB V2
- Artikelnummer:
- EFLA1060B
- EAN-Code:
- 605482079195
- Verfügbarkeit:
-
Produkt vorrätig
einfach günstig bestellen
Unsere Logistikpartner sind für uns jeden Werktag unterwegs!
Produktinformation :
Key Features
- Up to 60 amps continuous current with proper air flow and 75 amps burst current (15 seconds)
- 5A continuous current, 5V switch-mode BEC circuit (proper cooling and airflow required)
- Stronger BEC for support of most 3-axis stabilization systems
- Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
- 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
- Finned heat sinks
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
- Programmable soft start for helis and airplanes
- Auto motor shut down if signal is lost or there is interference
- Programmable timing—5 user-selectable ranges for use with a large variety of brushless motors
- Utilizes new smaller MOSFET technology to minimize weight
- Radio system power on/off switch
- Pre-wired connectors—E-flite® EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads
Overview
The E-flite® 60-Amp Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.
Specs
Amperage: 40-60
Brake: Yes - Programmable
Cells w/BEC: 3-6S Li-Po or 9-18 Ni-MH/Ni-Cd
Continuous Maximum Current: 50 - 75A
Height: 0.61 in (15.5mm)
Input Connector Types: EC3
Input Voltage: 10.8V - 22.2V
Length: 2.85 in (73.0mm)
Momentary Peak Current: 15 sec @ 75A with proper cooling air flow
Output Connector Types: 13 AWG with 3.5mm female gold bullet connectors
Type: Brushless
Weight: 2.65 oz (75.0 g)
Width: 1.30 in (33.0mm)
Wire Gauge: 13AWG
