Castle Field Link Programmer Air

Castle Kreationen "Air" Feld Link Programmer. Die AIR Field Link ist kompatibel mit fast allen Phoenix, Phoenix HV, Eis, ICE HV und Thunderbird-Controller sowie BEC CC und CC BEC PRO BECs.  Es gibt immer die alte Programmierung Stock-Methode, die wir alle lieben zu hassen. Ja es funktioniert, aber... es einen besseren Weg geben muss. Jetzt gibt es Field Link! Field Link können Sie die am häufigsten verwendeten Einstellungen in Ihrem Castle--Controller auf einen einzigen Knopfdruck zu ändern. Kein Computer notwendig (meistens). Einfach verbinden das Feld Link auf die Drosselklappe Führung des Controllers und macht das Paar wie unten beschrieben. Klicken Sie auf die Schaltfläche, um einen Bildlauf durch und ändern Sie die angegebenen Einstellungen. Es erhält keine einfacher! Diese Karte ist auch eine Burg-Link, der Zugriff auf die ganze Welt der Castle erlaubt Optimierung Funktionalität.

This is the Castle Creations "Air" Field Link Programmer. The AIR Field Link is compatible with nearly all Phoenix, Phoenix HV, ICE, ICE HV and Thunderbird controllers as well as CC BEC and CC BEC PRO BECs. Sometimes you need to make a change in the programming of a Castle controller and you just don't happen to have a laptop in your man purse. What to do? There's always the old stick programming method that we all love to hate. Yes it works, but...there has to be a better way. Now there is Field Link! Field Link allows you to modify the most commonly used settings in your Castle controller all at the touch of a single button. No computer needed (mostly). Simply connect the Field Link to the throttle lead of the controller and power the pair as described below. Click the button to scroll through and change the indicated settings. It doesnt get any easier! This card is also a Castle Link that allows access to the entire world of Castle tuning functionality.

Specific Usage Notes:

Thunderbird Controllers: Thunderbird controllers have fewer settings than may be represented on the Field Link. The Field Link will simply skip over these unsupported option rows.

CC BEC and CC BEC Pro: CC BEC and CC BEC Pro have adjustable output voltages only. Use the BEC VOLTAGE row on the Field Link to change their output value.

CC BEC: CC BEC does not supply output power when connected to the Castle Link or Field Link. It must therefore be powered with a Y harness for field use. The motor pack is not required for this specific setup.

CC BEC Pro: To use the Field Link you must use the adapter cable provided with your CC BEC Pro. Connect one side to the Field Link and the other side to the “Link Port” on your CC BEC Pro.

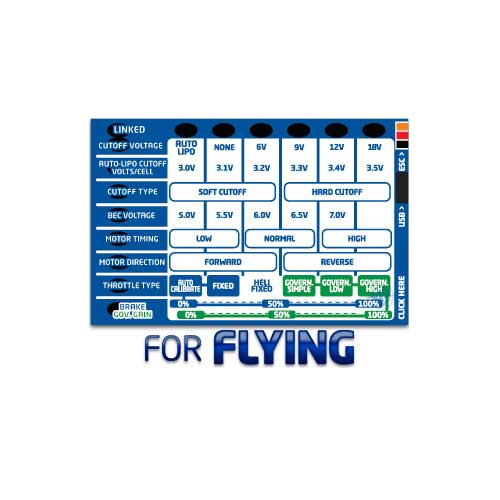

Note: Field Link Card is capable of changing the following settings, however, the card cannot change settings on controller series that do not have these settings.

Cutoff voltage

Auto LiPo volts per cell (3.0, 3.1, 3.2, 3.3, 3.4, 3.5)

Low voltage cutoff type

BEC voltage setting

Motor timing

Motor direction

Throttle type

Brake

Governor gain

Specifications:
Length: 3.5" (89mm)
Width: 2.25" (57mm)
Height: .1875" (5mm)
