Electron EZFW ER-30 Classic Set B 90° 6mm Coupling System (CB)

ER-30eVo set B

Main legs pin conection: 6mm

Main retraction angles: 90°

Nose retraction angels: 90°

Steering system: Coupling System

Nose leg pin conection: 6mm

Electronics: Controlbox

Screws/blind nuts Set: No

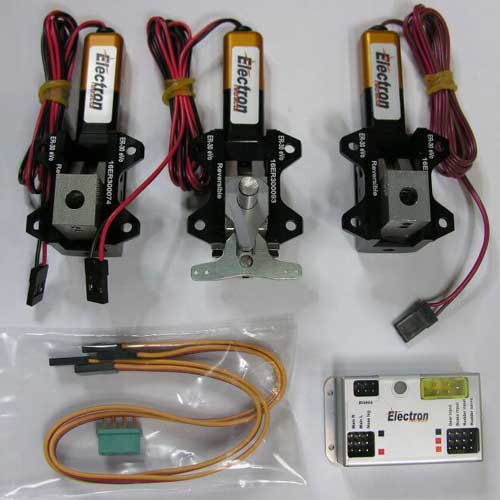

Includes:

2x ER-30eVo retract with options selected

1x ER-30eVo (electron steering system) retract with options selected

1x Electronic selected RB-45

1x Cables and conector

Features:

The ER-30eVo is designed for planes up to 8 kg (16Lb).

Weight (3 retract): 225gr

Nose leg pin conector: 6mm

Main legs pin conector: 6mm

Nose trunion retraction angles: 90º

Main trunion retraction angles: 90º

Steeerable options: Electron steering system, Simple steering

Recomended battery: 500mAh (Lipo 2s or 3s), 500mAh 3s Life

Max current: 2A, with 3SLiPo

Electron Retracts presents the new ER-30eVo, designed for planes up to  8 kg (16Lb) and backed by the guarantee of quality Electron is know for.

-Compact design: The ER-30eVo main frame is milled from a single aluminium block, housing a spindle system with internal absorbers mounted between three bearings (two axial and one radial). All parts are very well protected inside the strong main body.

-Light, strong and precise: The main body is milled from a single block of 7075 T6 aeronautical aluminium. Electron uses the latest industrial milling machines allowing the highest accuracy on all parts, resulting a system that is strong, smooth and without play.

-Very easy maintenance: All rotating parts are made with self lubricating materials that require very low maintenance. Any damaged part can also be changed very easily. With just four screws you can completely disassemble the system and Electron Retracts can supply spares of all parts.

-Reversible: All retracts purchased from January 2015 are a reversible version: this means that it can be operated in normal or reverse mode. This version also accepts trunions with all retraction angles (from 70º to 105º). Following this manual or see this video, the customer can disassemble the trunion in order to change the direction of operation or of the retraction angle (in this second case a new trunion with desired angle will be necessary)
