Electron Räder 65mm m. elektrischen Bremsen 1 Paar
- Artikelnummer:
- 561.65
- Verfügbarkeit:
-
Produkt vorrätig
einfach günstig bestellen
Diesen Artikel senden wir dir innerhalb Österreichs versandkostenfrei zu!
Electron brakes are made from special materials having undergone a long development process. Thanks to this and combined with the Xicoy controller Electron are able to obtain a smooth breaking system, with low power consumption and great performance.
Electron’s philosophy is ” improvement is always possible” and 2017 was dedicated to improving the magnetic brakes, and their controller, this resulting is a more reliable system.
Tradicionally, breaking systems become unbalanced with use. Electron significantly reduced this effect by means of the following:
- The braking element is made out of high density rubber, with this we achieve a greater resistance to ware and a more even braking.
- The distance between the disk and the electromagnet is minimal, allowing for a very powerful braking effect.
- As with the first version, the friction that is produced happens between the rubber on the disk brakes and the aluminium on the electromagnet, never metal against metal. This prevents any residual magnetism and allows the wheels to rotate completely freely once the brakes have been deactivated.
- A new high tech control unit with internal gyroscope has been developed. The gyro will compensate for any imbalance between the main wheels, and to help keep the model trajectory on the runway. This controller (GS200) does this by mixing the brakes and the steering
Ø Magnet (mm) 32
Current Consumition at full breake, 8V (A) 0,85
Resistance (Ω) 10
Weight (g) 38
Our electronic retract controllers RB-45, RS-200 and GS-200 have an integrated brake controller, if your plane doenst have retracts, you can use just the E_Brake controller, lighter than the complete sets.

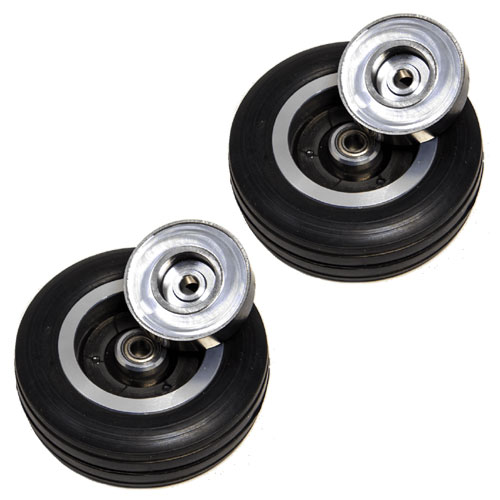

Main Wheels
The wheels are made from a 7075T6 aluminium rim and vulcanized rubber tyres. The tyres are empty inside and work with atmospheric pressure, so they are not inflated . All wheels are equipped with bearings.
Ø Tyre (mm) 65
Ø Magnet (mm) 32
Ø Axle 5mm
Weight (g) 55
Our electronic retract controllers RB-45, RS-200 and GS-200 have an integrated brake controller, if your plane doenst have retracts, you can use just the E_Brake controller, lighter than the complete sets.
| Durchmesser in mm: | 65 |
