BK Topmodel Elite V ARF blau/rot 3060 mm
- Artikelnummer:
- CZ020131ARF
- Verfügbarkeit:
-
Produkt vorrätig
einfach günstig bestellen
Diesen Artikel senden wir dir innerhalb Österreichs versandkostenfrei zu!

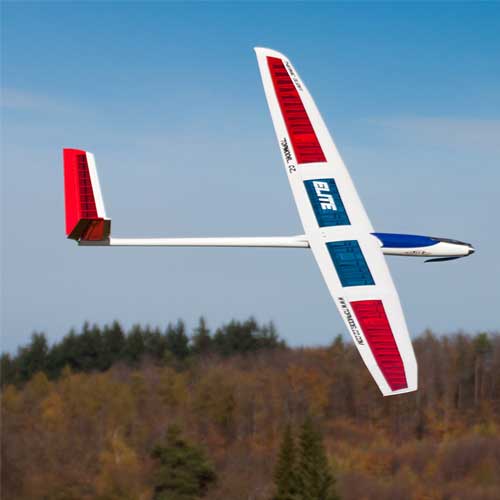

Lightweight, high-performance electric glider with V-tail controlled in all axes. Elite - V will satisfy all those interested who want to enjoy the beautiful flying in thermals. It is characterized by calm and stable gliding.
Flaps allow to fly efficiently even in bad weather, make thermals and also works well as airbrakes and thus allow the land to the foot even under the most difficult conditions.
Three-piece wing has a lightweight balsa framework with D-box and MH32 airfoil. The wing and butterfly tail are both easily removable and storable for better transportation to the airport. Fibreglass fuselage is reinforced with carbon fiber, nose of the fuselage is cut off and ready to glue the motor mount and install Ø 36 mm motor with Ø 40 mm spinner and folding propeller. The tail surfaces have the main spar and the leading edge made of carbon and the servo control is placed below the wing. The drive unit is designed so that it is possible to use 3S lipo battery.
Elite V will love not only fans of competition flying, but all pilots who enjoy comfortable flying in thermals. Really excellent flight characteristics will inspire you and you will look forward to every next flying.
Technische Daten:
Spannweite: 3060mm
Länge: 1510
Gewicht: 1,75-1,90kg
Profil: MH32

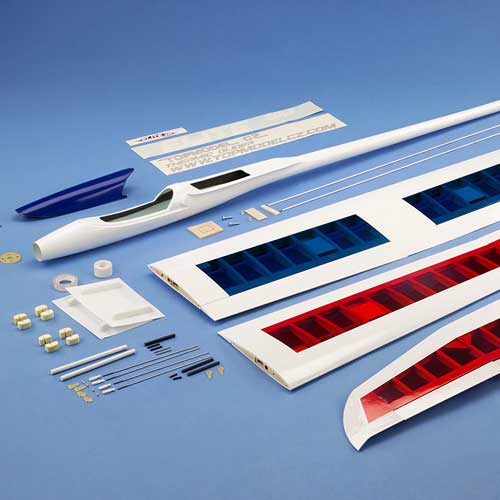

Kit contents:
Lightweight gel-coated white fiberglass fuselage reinforced with carbon and blue tinted fiberglass canopy
The wings are in three parts to ease transport and storage
Lightweight wings are made in a balsa framework and covered with Oracover®
Removeable V-tail are made in a balsa framework with carbon spar and covered with Oracover®
Vinyl cnc cut stickers
Top quality accessories (servo covers, servo mount, rods, ending ties, control horns, tape for sticking flaps, fiberglass motor mount, plywood servo mount to the tail,...)
Complet assembly manual with step by step illustrations
erforderliches Zubehör:
2xHS-85MG
4xHS-82MG
Alu Spinner Turbo 40/5.0/8
Klappluftschraube 14x8
Lipo 3S 2200-3000
Servokabel, Stecker,
| Länge in mm: | 1510 |
| Spannweite in mm: | 3060 |
| Spannweite: | 3000 - 4000 mm |
| Gewicht in g: | 1900 |
| Flugzeugtyp: | Segelflugmodell |
| Version: | ARF (Almost Ready to Fly) |
| Material: | Holz, GFK/CFK |
| Antriebsart: | Elektro |
| Motorart: | Brushless |
| Akku-Type: | LiPo (Lithium-Polymer) |
| Akku-Zellen: | 3S LiPo |
| Erfahrungslevel: | Fortgeschrittener, Profi |
Warnhinweise:
Von Kleinkindern unter 36 Monaten fernhalten, da verschluckbare Kleinteile und spitze Gegenstände enthalten sein können (Erstickungsgefahr).
Nicht für Kinder unter 14 Jahren geeignet.
Nur unter unmittelbarer Aufsicht von Erwachsenen benutzen.
