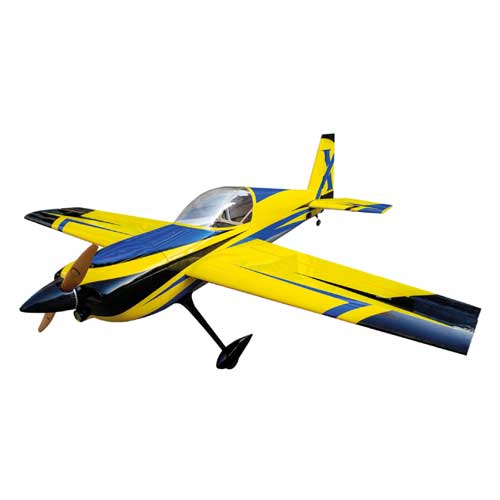

BK Extreme Flight Slick 580 74" gelb/blau 1880 mm

74" Slick 580 EXP

Using design and construction technology from Jase Dussia's 120CC Slick 580 EXP, the 74" features a new generation of light, strong EXP construction. We've radically expanded the use of composites, drawing on our experience from 120CC, which has allowed us to create a highly styled appearance along with very light weight.

For gasoline power, we recommend the DA-35 engine, and we have pre-marked the firewall for this engine. Many gas engines 30-35CC are appropriate, and the firewall also has "crosshair" markings to align these various templates. If installing the DA-35, the standoffs included with the engine are the correct length. A 12, 14, or 17 oz. Extreme Flight Flowmaster fuel tank is recommended.

For electric power, we recommend the XPWR 30CC brushless outrunner motor and an 80-120 amp HV ESC, providing approximately 3000-3200 watts. Our choice is the Castle Creations Edge series. The 74" Slick 580 airframe is equipped with a custom mounting location for the Edge controllers. With the XPWR 30CC, we recommend 12S 3000-3700mah lipo batteries and a 19x8, 19x10, or 20x8 electric prop.

Extreme Flight BlazingStar STANDARD EXTRA-LONG adjustable standoff kit to perfectly mount the XPWR 30CC motor into this airframe or anywhere sized for a DA-35 installation. The firewall of the 74" Slick 580 EXP is also pre-marked for the XPWR 30CC bolt pattern to add convenience.

The Slick 580 EXP requires 4 full-size metal-gear servos, 275 oz-inches or more recommended. We tested with MKS HV1220 servos. If using gas power, add one servo for throttle control, which does not need to be high torque, although high speed is beneficial.

The spinner size is 3.5 inches diameter. Note that the XPWR 30CC requires a perimeter-bolt style spinner or a center-bolt adaptor.

The 74" Slick 580 borrows tech from Jase Dussia's 120CC Slick, and has been further targeted to maximize 3D stability. This is a rock-solid low-and-slow 3D platform that could easily be a 3D trainer, while retaining the abilities of its competition-winning big brother. It has very low coupling, no rock, and excellent manners, while snapping and spinning precisely and sharply. To quote Chris Hinson, CEO and chief test pilot of this project: "It 3D's like the best Edge, and has the precision of the Slick."

Product Information

Specifications

Wingspan: 74 inches

Length: 71.5 inches with spinner

Width of elevator/stabilizer: 30 inches

Height of the rudder sitting on the tailwheel: 19 inches

Wing area: 1070 square inches

Weight: 10.5-11 lbs.

Gas Power System

DA 35

12-14 oz. FlowMaster fuel tank

EF Fuel Dot

Electric Power System

Xpwr 30cc electric motor

Castle Creations Edge HV-80 electronic speed control

19 x 8, 19 x 10, or 20 x 8 electric prop

Blazing Star Electric Standard EXTRA LONG Standoff

12 S (x2 6S) 3000-3700 mAh batteries

Spinner

3.5 inch

Servos

Qty. 4 full size, metal gear hi-torque servos. MKS HV-1220 recommended.

Qty. 1 throttle servo, we used a metal gear 13g for the manual build. MKS HV-1250 recommended.

Servo Arms

Qty. 2 Extreme Flight 1.5 inch single servo arms (tapped 3mm) for ailerons

Qty. 1 Extreme Flight 2 inch single servo arms (tapped for 3mm) for elevator

Qty. 1 Extreme Flight 3 inch double servo arm (tapped for 3mm) for pull-pull rudder

Servo Extensions

Qty. 4 Extreme Flight 20 AWG 6" servo extensions for ailerons

Qty. 1 Extreme Flight 20 AWG 24" servo extensions for elevator

Qty. 1 Extreme Flight 20 AWG 12" servo extension for throttle servo or ESC

Technische Daten:

Spannweite (mm): 1880

Fluggewicht ca. (g): 4800-5000

Leergewicht ca. (g): -

Steuerung: H,S,Q,M

Hersteller: Extremeflight-RC

Rumpf: Holz

Flächen: Holz/Rippenb.

Ausführung: ARF - ALMOST READY TO FLY

empf.Akku: 10S/3300-4200mAh LiXX

Länge (mm): -

empf.Motor: ROBBE Ro-Power Torque 6369

Profil: -

Flugerfahrung: Fortgeschritten

Bauerfahrung: Fortgeschritten

Antriebsart: Elektro

weiß/rot/blau 9743631

gelb/blau 9743629
