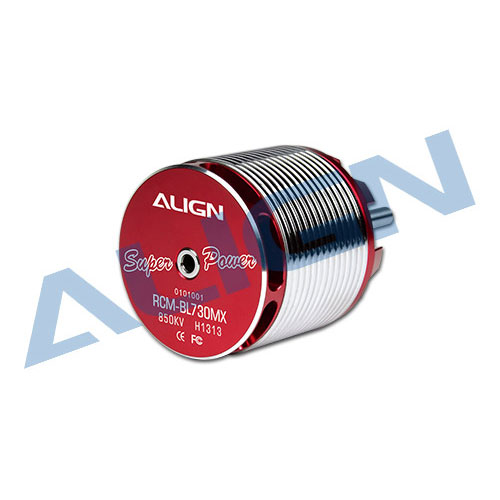

Brushless Motor T-Rex 550X 730MX Brushless Motor 850KV Align

Brand new 730MX motor is especially designed for power upgraded T-REX 550E, normally found in 700 class high spec helicopter, that enthusiasts can clearly feel the dramatic increase in power and torque, while taking advantage of its higher efficiency, lower current and temperature benefits.

-The 730MX(850KV) motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.

- Maintenance free, high torque, high efficiency, stable and quiet.

- High-speed ball bearings, powerful magnetic outrunner rotor.

- Suitable for T-REX 550E helicopters,Must with 550E PRO Motor Mount(H55B002XXW)、550E PRO Carbon Fiber Main Frame-2.0mm(H55B003XXW)、Motor Pinion Helical Gear 16T(H55G003XXW)

Effective immediately, the Align MX series motors have 50% off Lifetime service where your old motor can be exchanged for 50% off the retail pricing of a new equal spec motor. If needed, please contact to Align authorized distributors .

Spec.:

Input voltage: 6S

Max continuous current: 115A/195A(5sec)

Max output power: 2550W/4330W(5sec)

KV value: 850KV

Stator Arms: 12

Magnet Poles: 8

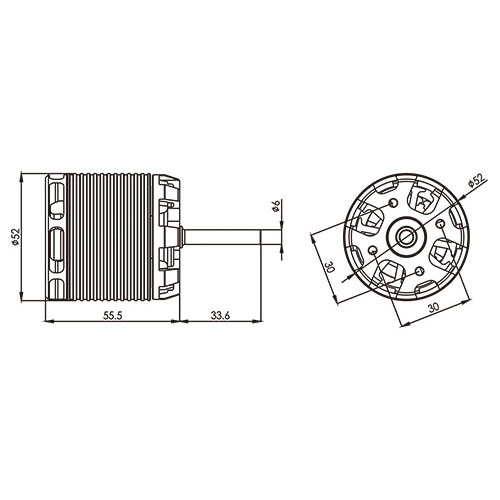

Dimension: 6x52x89.1mm

Weight: 380g

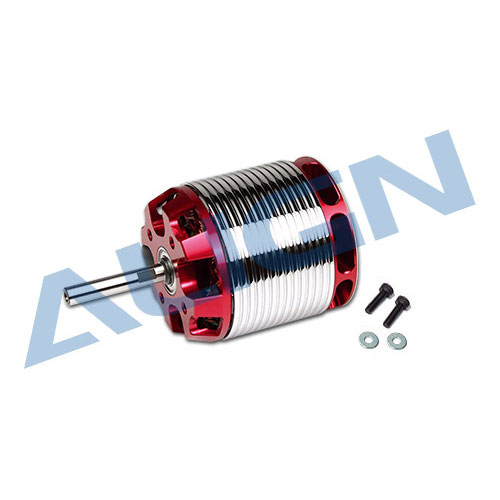

Accessories:

Socket screw(M4X10) x 2

Washer(Φ4XΦ10X1) x 2

4mm gilt terminal x 3
