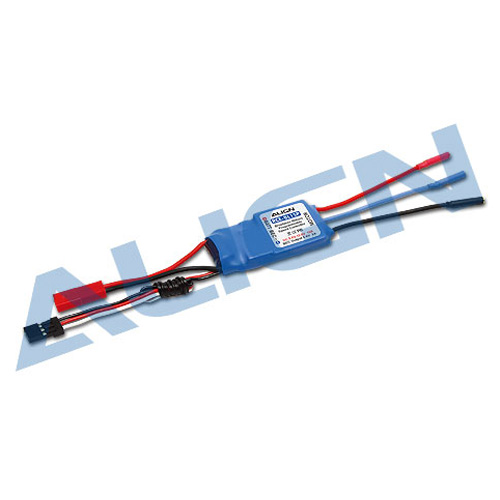

Brushless Regler RCE-BL15P ESC 15A BEC

Fearture:

5-6V step-less adjustable BEC output allowing custom voltage setting to match servo specification.

BEC output utilizing switching power system, suitable for 7.4-11.1V (2S-3S) Li battery, with continuous current rating of 3A, and burst rating of 5A.

Three programmable throttle speed settings to support quick throttle response.

Soft Start and Governor Mode are included.

Small and compact PCB design for lightweight and simple installation.

Large heat sink for optimum thermal performance.

Highly compatible to work with 98% of all brushless motors currently on the market.

Ultra-smooth motor start designed to run with all kinds of brushless motors.

The power inlet utilizes a Japanese made "Low ESR" capacitor in order to provide stable power source.

The throttle has more than 200 step resolution that provides great throttle response and control.

Continuous current:15Amps with proper air flow

Surge current:20Amps

Supporting motor types:2 poles to 10+poles in/outrunner brushless motors

Supporting maximum RPM:2poles=>190,000rpm

Supporting input voltage:5.5V~12.6V

BEC output voltage: 5-6V step-less adjustment

Supporting battery types: Li-Po 2~3 cells

Size:47.6 X 23 X 9.3mm

Weight:16.4g
