HB Align T-Rex 500XT Dominator Super Combo

English

Experienced in numerous of innovations, the brand new T-REX 500XT is now ready to go. More attractive and creative design ideas are all in here, it absolutely would be your favorite T-REX 500XT model ever. The New Torque Drive System; The Better Performance Advantage.

Refresh and refine, T-REX 500XT adapt with brand new FL rotor head system, utilizes an extremely low CG design which reduces resistance during 3D maneuvers while increasing flight responsiveness and precision. A progressive design adds a gloss silver and red anodizing appearance which continue our quality development based on our 700 class helicopter. The T-REX 500XT main frame utilizes composite material integration technology on carbon side frame plates, including the addition of battery mounting side rails, and a top motor mount design. The 500XT utilizes a new torque drive assembly, highly reduce gear abrasion and increase power output gives more direct and precise flight performance and extraordinary tail performance. T-REX 500XT landing skid is tilted 5 degrees forward to improve crashworthiness.

T-REX 500XT utilizes 470mm main blades and 520MX(1600KV/3527) motor with 20% power upgrades than the original 1600KV/3225 motor. The latest new RCE-BL80A Brushless ESC support dual BEC output from 6 ~ 8.4V providing efficient and superior power. The NEW DS530M/DS535M digital servos are with extreme torque and speed response allow to support faster, more precise and accurate flight performance.

Equipped with all the top end electronic devices, T-REX 500XT is as stable and powerful like the large scale helicopters. It is about to re-define the 500-class helicopters in your mind.

470 Main Blade

New extended 470mm main blades for T-REX 500X effectively improve the flying stability and power performance. Enhance the power for better control allow to enjoy T-REX 500X flights same like other large size helicopters.

New 78 size tail blades are longer in length and offer superior and precise tail holding performance, even during demanding 3D flight.

Brand New 500EFL Main Rotor Head Set

The brand new low CG 500EFL Flybarless Rotor Head System utilizes the precision grinding of high-carbon steel hollow shaft effectively increase its concentricity. Allow to reduce resistance during 3D maneuvers, increased flight reponsiveness and precision. In addition, the style appearance harmony with red anodized and stainless color, bring out the high quality just like 700 size 3D helicopter.

New Swashplate (Gigh Stability & Zero Slop)

New Swashplate design with precise bearings features in zero slop delivering a precise and accurate controlled flight.

520MX Brushles Motor (1600KV / 3527)

New 520MX motor features high efficency, superior power, excellent torque, low current draw, and low operating temperature. Allow to provide maintaining consistent torqque and head speed through continuous 3D maneuvers.

CNC Metal Shapely Reinforcement Plate And Brace Assembly

Brand new CNC metal reinforcement plate and brace compare with frame mounting bolt effectively increase the torsional strength of main frame, under extreme 3D maneuver, you can strongly feel its solid reinforcement from structure. In addition, the styling appearance harmony with red anodized and stainless color bring out the high tactile appeal.

The 3rd Main Shaft Bearing Block

An additional 3rd main shaft bearing block increases the strength of the main frame while improving 3D flight.

Quick release battery mounting plate

Brand new latching battery tray which utilizes integrated mounting rails inside the frame to simplify insertion / removal of battery while providing protection for the battery.

High Voltage Servos

DS530M HV Cyclic and DS535M HV Rudder servos support up to 8.4V for superior responsiveness, extreme torque, and improved performance.

500 Slant Thread Main Drive Gear Set

Utilize of Strenghten main gear case features in using larger bearing has a higher load carry capacity which reduces the loss of momentum and improves the efficency, speed and smoothness of the main rotor. The new main gear case and all-metal central pulley transmission system is an efficent design to deliver the ultimate performance.

Progressive Lightweight Landing Skid

Landing Skid is tilted 5 degrees forward to improve crashworthiness.

500 Tail Boom

A 19mm wide Tail Boom to improves the torsional strength.

Tail Control Unit

The newly designed dual point supported tail control assembly delivers slop free performance while improving rudder and precision.

Brand New Tail Rotor Holder

The new Tail Rotor Holder design includes thrust bearings which increases durability, as well as significantly improving the accuracy and efficiency of tail performance when using 78 size Tail Blades.

78 Tail Blade

New 78 size Tail Blades are longer in length and offer superior and precise tail holding performance, even during demanding 3D flight.

Special Qualified Washer

Advanced Aluminium CNC cutting manufactures, clean aesthetic perfectly exhibits the helicopters exclusiveness.

1.6mm 3K Carbon Fiber Main Frame

Carbon fiber side frame plates are manufactured using proprietary composite material integration technology which integrates the battery mounting rails into the frame. This unique use of open space within the frame vreates a rigid frame and is aesthetically pleasing.

Carbon Fiber Tail Control Rod Assembly

Carbon Fiber Tail Control Rod is practical and improves the helicopters tail control.

Specifications T-REX 500X

Length: 935mm

Height: 259mm

Width: 151mm

Main Blade Length: 470mm

Main Rotor Diameter: 1054mm

Tail Rotor Diameter: 219mm

Motor Drive Gear: 12T

Main Drive Gear: 134T

Main Drive Pulley: 80T

Tail Drive Gear: 21T

Drive Gear Ratio: 11.17:1:3.81

Weight (w/o power system): 1400g

Specifications RCM-BL520MX

Input voltage: 22.2V (6S LiPo)

KV value: 1600

Continuous current: 85A

Surge current: 130A (2 sec)

Continuous Output power: 1900W

Surge Output power: 2750W (2 sec)

Stator dimension: 3527

Stator arms: 9

Magnet Poles: 6

Specifications RCE-BL80A

Continuous current: 80A

Surge current: 100A

Supporting Input voltage: 7.4V ~ 22.2V

Supporting battery types: 2S ~ 6S LiPo/LiIon

BEC Output voltage: 6V ~ 8.4V

BEC Output current: continuous 5A / surge 7A

Specifications DS530M HV Digital Servo

Rating voltage: DC 6.0V - 8.4V

Temperature range: -20°C ~ +60°C

Stall torque: 6.5kg/cm @ 6.0V, 9.0kg/cm @ 8.4V

Motion Speed: 0.085sec/60° @ 6.0V, 0.065sec/60° @ 8.4V

Specifications DS535M HV Digital Servo

Rating voltage: DC 6.0V - 8.4V

Temperature range: -20°C ~ +60°C

Stall torque: 5.0kg/cm @ 6.0V, 6.5kg/cm @ 8.4V

Motion Speed: 0.05sec/60° @ 6.0V, 0.035sec/60° @ 8.4V

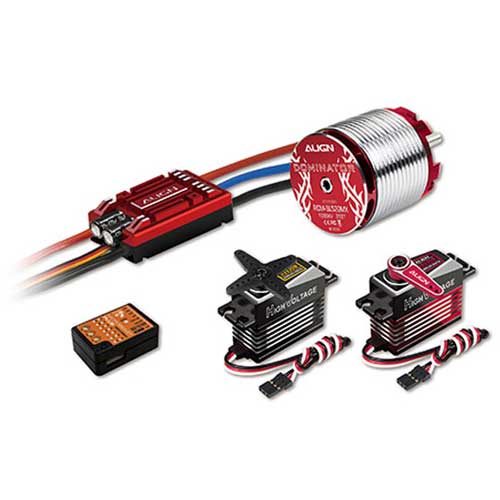

Content

• 1x T-REX 500X Dominator Kit

• 1x 520MX Brushless Motor

• 1x RCE-BL80A Brushless ESC

• 2x 470mm Carbon Main Rotor Blade

• 2x 78mm Tail Rotor Blade

• 3x DS530M HV Digital Servo

• 1x DS535M HV Digital Servo

• 1x MICROBEAST Plus Flybarless System

Required for assembly

• 1x Transmitter (7-channel or more, helicopter system)

• 1x Receiver (7-channel or more, suitable to Transmitter)

• 1x Pitch gauge or Digital Pitch Gauge

• 1x Flight battery 6S Li-Po 2600 ~ 4600mAh (3300mAh suggestion)

• 1x LiPo Battery Charger
