Brushless Motor AXI 2220/16 V2 Long 910 U/min bis 1200 g

Technical Details for AXi 2220/20 v2 Long

No. of cells 2-3s Li-Poly

RPM/V 910 RPM/V

Max. efficiency 85%

Max. efficiency current 20 - 28 A (>75%)

No load current 1,5 A

Current capacity 29 A/60 s

Internal Resistance 75,6 mohm

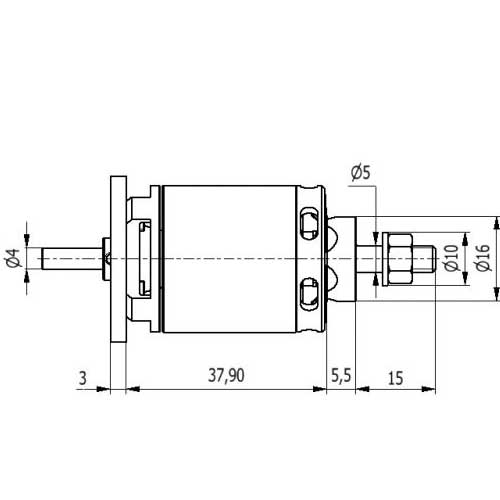

Dimensions (∅ x L) 27,7 x 51,6 mm

Shaft diameter 4 mm

Weight 91 g

Max. Power 400W

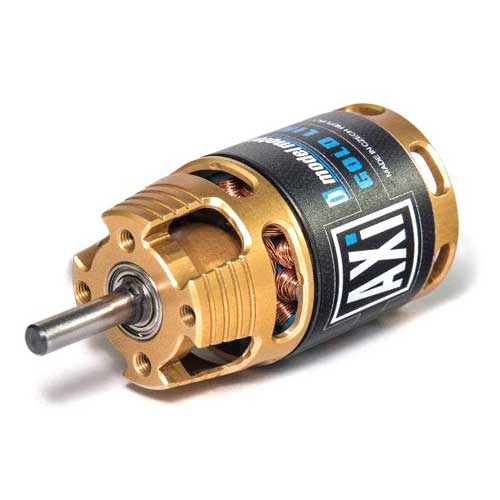

The high quality and performance of AXI 22xx V2 motors meant that they were a perfect base for development of the new AXI 2220/xx GOLD LINE. New small and powerfull motor AXI 2220/16 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 800g and for light sailplanes up to 1000g. Hardened steel Shaft have 4mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.

Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. Delivered without prop. holder and Radial mount set!

Segelflugmodelle : bis 900gr Luftschraube 11x4

Segelflugmodelle : bis 1200gr Luftschraube 9,5x5

Hotlinter: bis 800gr Luftschraube 9x6
