Brushless Motor AXI 2220/20 V2 Long 720 U/min bis 1200 g

Technical Details for AXi 2220/20 v2 Long

No. of cells (LiPo) 2-3

RPM/V 720 Kv

Max. Efficiency 87%

No load current 0.7A

Maximum Load 30.0A

Internal Resistance 0.076Ω

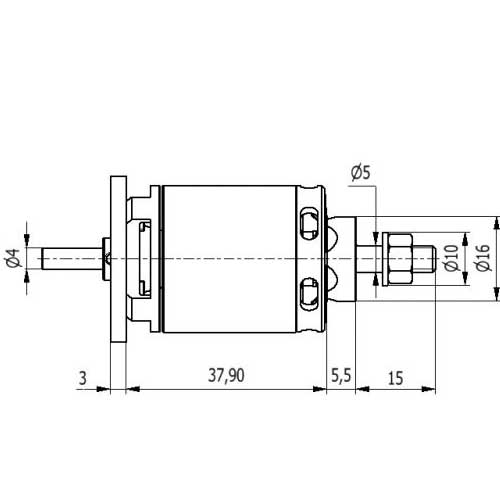

Diameter 27.00mm (1.06")

Length 51.00mm (2.01")

Shaft Diameter 4.00mm (0.16")

Max. Efficiency Current 18-24A (>75%)

Glow Equivalent -

Weight 91.0g (3.2oz.)

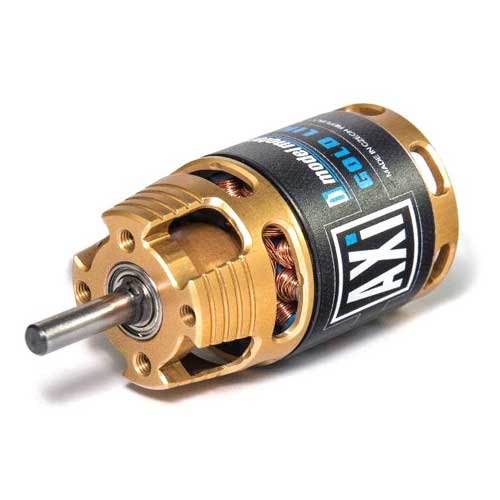

An elongated brushless motor from AXi with 4mm hardened steel shaft and two large ball bearings for mechanical stability. These motors are a new addition to the latest AXi v2 design, with improved efficiency, power output and stability throughout the range. Because they are designed for powered gliders and hotliners, these motors are not recommended for radial mounting and instead should be front mounted with the motor shaft pointing out the front of the model.

Use the 2220/20 v2 long in gliders up to 1200g on 3s with 14×6 propellers or hotliners up to 800g on 3s with 12×9 propellers. A 30 amp ESC is recommended in both cases.

In the box: –

1 x AXi 2220/20 v2 long brushless outrunner

Not included: -

Radial mounting kit or mounting hardware
