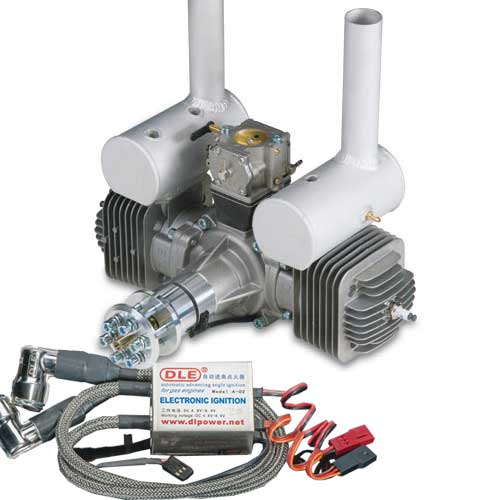

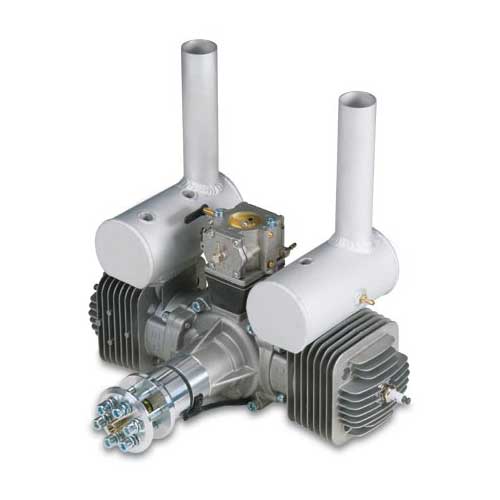

Motor DLE-170+Schalldämpfer

Der DLE-170 mit Heckvergasser ist ein leistungsstarker Boxermotor mit extrem starkem Drehmoment.

Der Motor eignet sich ideal für 3D und Kunstflugmodelle von 2,80 bis 3,20 Meter und natürlich auch für riesige Schleppmodelle.

Features:

Three crank bearings, simple design for lighter weight

Double V-type reed valves, bottom induction

Automatic electronic ignition

Customized carburetor

Special aluminum alloy crankcase

Advanced CNC machining

High quality sealed bearings

Horizontally opposed twin cylinders for low vibration

High power-to-weight ratio

Includes mufflers

Includes mount

Specifications:

Stock Number: DLEG0170

Displacement: 170 cc (10.37 cu in)

Bore: 2.05 in (52 mm)

Stroke: 1.57 in (40 mm)

Weight: 9.06 lbs (4.11 kg)

RPM Range: 1,100-9,000

Output: 17.5 hp @ 9,000 rpm

Requires: Gasoline, oil, ignition battery & propeller

Includes: electronic ignition, mufflers, mount, spark plugs, gaskets, bolts, machined aluminum standoffs, throttle arm extension & mounting template

Suggested Propellers: 30 x 12 & 32 x 10

Technical Data:

Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack

Compression Ratio: 9.5:1

Gasoline/Oil Mix: 30:1

Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent

Weights (individual): Engine: 7.83 lbs (3,550 g); Exhaust (2): 7.05 oz (200 g); Ignition: 5.64 oz (160 g)
