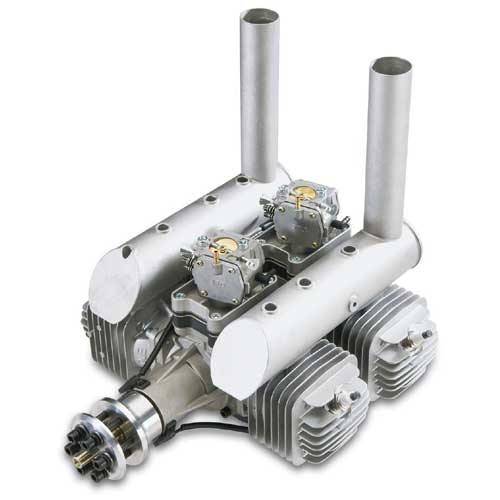

Motor DLE-222+Schalldämpfer

Hubraum: 222,5 ccm

Bohrung: 45 mm

Hub: 35 mm

Leistung: 21,5 PS bei 7,500 Umdrehungen

Benzin-Gemisch: 30:1

Inhalt: elektronische Zündung, Zündkerzen, SD-Dichtung, Distanzbolzen,

Gashebel und Anleitung.

Empfohlene Propeller: Falcon 2-Blatt 32x10, 32x12, 34x10

Falcon 3-Blatt 29x13, 29x14, 30x12, 30x13

Gewichte: Motor: 4860 gr. / Schalldämpfer 470 gr. / Zündung: 380 gr.

Specifications:

Stock Number: DLEG0222

Displacement: 13.6 cu in (222.5 cc)

Bore: 1.77 in (45 mm)

Stroke: 1.38 in (35 mm)

Weight: 12.37 lb (5.61 kg)

RPM Range: 1,000-7,500

Output: 21.5 hp @ 7,500 rpm

Requires: Gasoline, oil, two ignition batteries & propeller

Includes: Dual electronic ignition, mufflers, spark plugs, gaskets, bolts, machined aluminum standoffs & throttle arm extension

Suggested Propellers: 32x10, 32x12 & 34x10

Technical Data:

Ignition Battery: two 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo Packs

Compression Ratio: 7.6:1

Gasoline/Oil Mix: 30:1

Replacement Spark Plug: 222-Q26 (DLEG2226) or equivalent

Recommended Products:

DLEQ1701 DLE Engines Propeller Drill Guide DLE-170/DLE-222

HCAM6351 (2) Hobbico HydriMax Ultra 6V 2000mAh NiMH Packs

XOAQ3210 Xoar 32x10 Beechwood Propeller

Recommended Options:

FPWP2212 (2) FlightPower FP25 7.4V 2100mAh LiPo Battery w/Star Plug

HCAM6426 (2) Hobbico LiFeSource 6.6V 1800mAh 10C LiFe Pack

XOAQ3212 Xoar 32x12 Beechwood Propeller

XOAQ3410 Xoar 34x10 Beechwood Propeller
